TASK Connect CAT 5e UTP 4 Pair 24 AWG Solid Bare Copper LSZH Network Cable 305m

The TASK Connect CAT 5e UTP 4 Pair 24 AWG Solid Bare Copper LSZH Network Cable is a high quality ethernet cable of speeds up to 1000Mbps.

A Low Smoke Zero Halogen (LSZH) network cable emit very limited smoke and zero halogen when exposed to high levels of heat and are now a requirement for building regulations in most countries with particular focus on hospitals, schools and other government buildings.

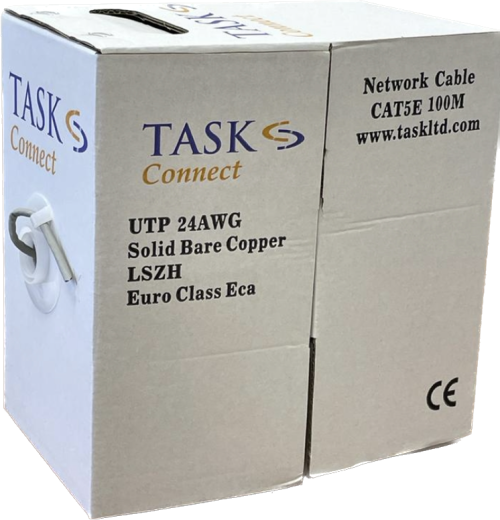

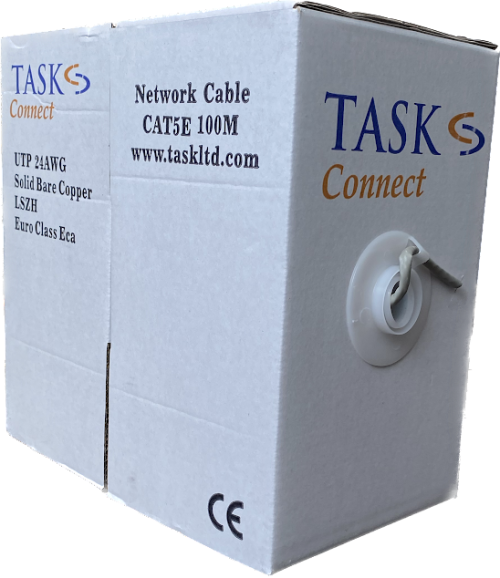

The 305m CAT5e from TASK Connect is supplied in a feeder box and is meter marked helping to ensure that you have the correct amount of cable to complete the job. This cable is ideal for networking in offices at home and is praticularly desired in CCTV installations due to its solid copper makeup.

The CAT 5e cable from TASK Connect is specifically designed for high speed Gigabit data transmission of up to 1000Mbps.

TASK Connect CAT 5e UTP 4 Pair 24 AWG Solid Bare Copper LSZH Network Cable 305m

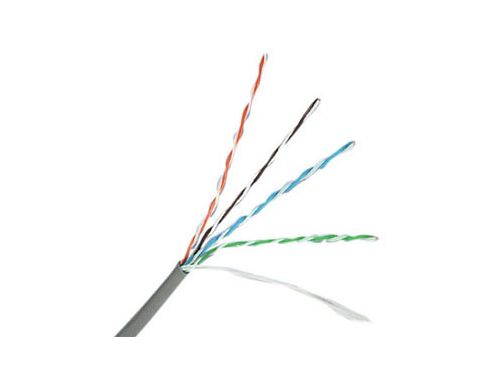

The Cat 5e cable from TASK Connect has the following basic construction characteristics:

Conductor  - Bare Copper Material with a diameter 0.485mm (24AWG)

Insulation – HDPE with a diameter of 0.90

Ripecord – Nylon

Jacket – LSZH with diameter of 5.00+/- 0.2

The Cat 5e is compliant to the following standards:

• RoHS Compliance
• CPR (Eca) Class EN 50575
• CE
• ISO9001
• REACH

Additional Characteristics of the TASK Connect Cat 5e UTP 4 pair solid bare copper cable include:

Temperature Rating: -20C to + 70C

Dialectric Breakdown: 2500V

DC Resistance/Unbalance:  28.6Ω/1000’Max/5% Max

Cable Color: Grey

Characteristics Impedance: 100Ω

TASK Connect CAT 5e UTP 4 Pair 24 AWG Solid Bare Copper LSZH Network Cable 305m benefits

The CAT 5e UTP 4 Pair 24 awg LSZH is an ideal product to be used in Data centres etc due to the safety benefits over traditional cables. Ideally LSZH cabelling should be used in all setting however, we know that that is not always possible but certainly should be used where is an increased risk of heat or fire. LSZH stands for low smoke zero halogen. TASK Connect also supply CAT 6 UTP, click here
