TASK Connect CAT 6 23AWG 4 Pair Solid Bare Copper LSZH Network Cable 100m

The TASK Connect CAT 6 4 Pair 23 AWG Solid Bare Copper LSZH Network Cable is a high quality ethernet cable of speeds up to 1000Mbps.

A Low Smoke Zero Halogen (LSZH) network cable emit very limited smoke and zero halogen when exposed to high levels of heat and are now a requirement for building regulations in most countries with particular focus on hospitals, schools and other government buildings.

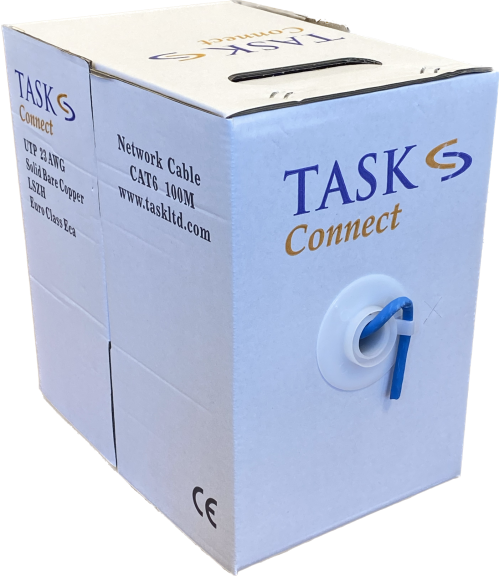

The 100m CAT6 from TASK Connect is supplied in a feeder box and is meter marked helping to ensure that you have the correct amount of cable to complete the job.

The TASK Connect CAT6 23AWG 4 Pair Solid Bare Copper LSZH Network Cable is ahigh quality product designed for the networking requirements of tomorrow while being fully backward compatible with todays standards.

Basic Construction

Conductor – Bare Copper – 0.546 (23AWG)

Insulation – HDPE – 1.02 (Diameter)

Ripcord – Nylon

Jacket – LSZH – 5.8+/- 0.2 (Diameter)

Basic Characteristics

Temperature Rating -20 to + 70

Dielectric Breakdown 2500V

DC Resstance / Unbalance 28.6Ω/1000’Max/5% Max

Characteristics Impenance 100Ω

• LSZH purple jacket
• Reverse Meter Marking
• Supplied in a 100m box
• Solid Copper

The Cat 6 is compliant to the following standards:

• RoHS Compliance
• CPR (Eca) Class EN 50575
• CE
• ISO9001
• REACH

TASK Connect CAT6 23AWG 4 Pair Solid Bare Copper LSZH Network Cable 100m
